Archy Tent

Clear Span Tent For Sale

Shoulder Tents Manufacturers in Shen zhen provide Clear frame tents for a variety of functions, wedding, party’s, events & exhibitions tents, Industrial storage tent, Tent for church. Clear Span Frame tents for sale. Structure Tents Manufacturers in Shenzhen. Buy Tents for Functions, Event, Parties & Weddings.

Clear Span Tent Specification

Clear Span Tent	Span Width	Bay Distance	Side Height	Roof Pitch	Main Aluminum Profile	Wind Load(km/h)	Snow Load(Kn/m2)	Popular Size
SDC-6	6m	3m	2.6m	20°	84483mm	80km/h	0.3mLn/m2	6x15m/6x21m
SDC-8	8m	3m	2.6m	20°	84483mm	80km/h	0.3mLn/m2	8x15m/8x30m
SDC-10	10m	5m	3m	18°	122683mm	100km/h	0.3mLn/m2	10x15m/10x30m
SDC-12	12m	5m	5m	18°	122683mm	100km/h	0.3mLn/m2	12x20m/12x30m
SDC-15	15m	5m	5m	18°	166883mm	100km/h	0.3mLn/m2	15x30m/15x50m
SDC-20	20m	5m	4m	18°	2041104mm	100km/h	0.3mLn/m2	20x30m/20x50m
SDC-25	25m	5m	4m	18°	2041104mm	100km/h	0.3mLn/m2	25x40m/25x50m
SDC-30	30m	5m	4m	18°	255.5113.55mm	100km/h	0.3mLn/m2	30x50m/30x60m
SDC-140	40m	5m	4m	18°	3001205mm	100km/h	0.3mLn/m2	40x50m/40x100m
SDC-50	50m	5m	4m	18°	3501205mm	100km/h	0.3mLn/m2	50x50m/50x100m

Material and Quality
Aluminum Frame Material	High Reinforced Aluminum Alloy, GB/6061-T6, Anti-rust Surface
Roof Material	850g/㎡ PVC Coated Polyester Fabric
Sidewall Material	650g/㎡ PVC Coated Polyester Fabric
PVC Fabric Feature	Waterproof, UV-resistant, Flame Retardant to DIN4102 B1,M2
Working temperature	-40° to +70°

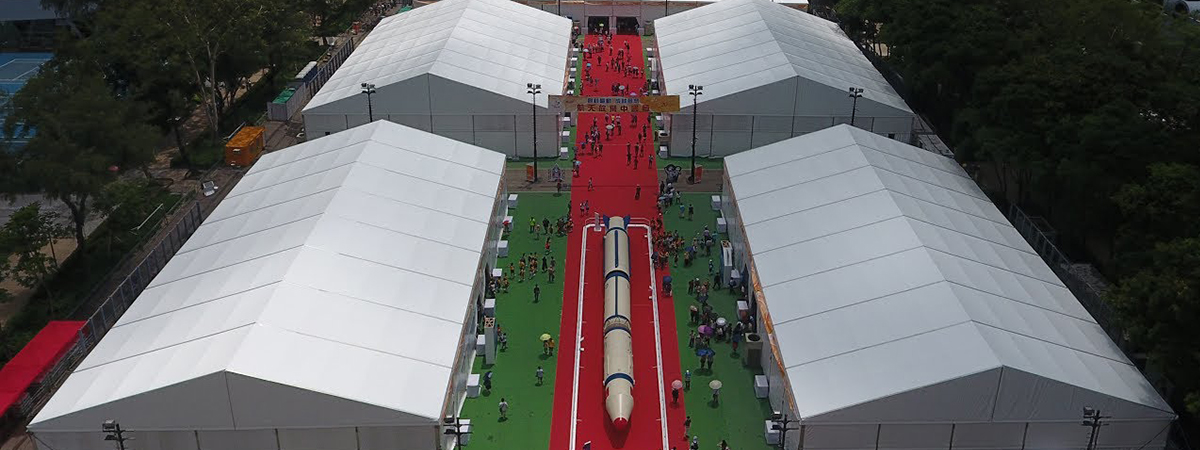

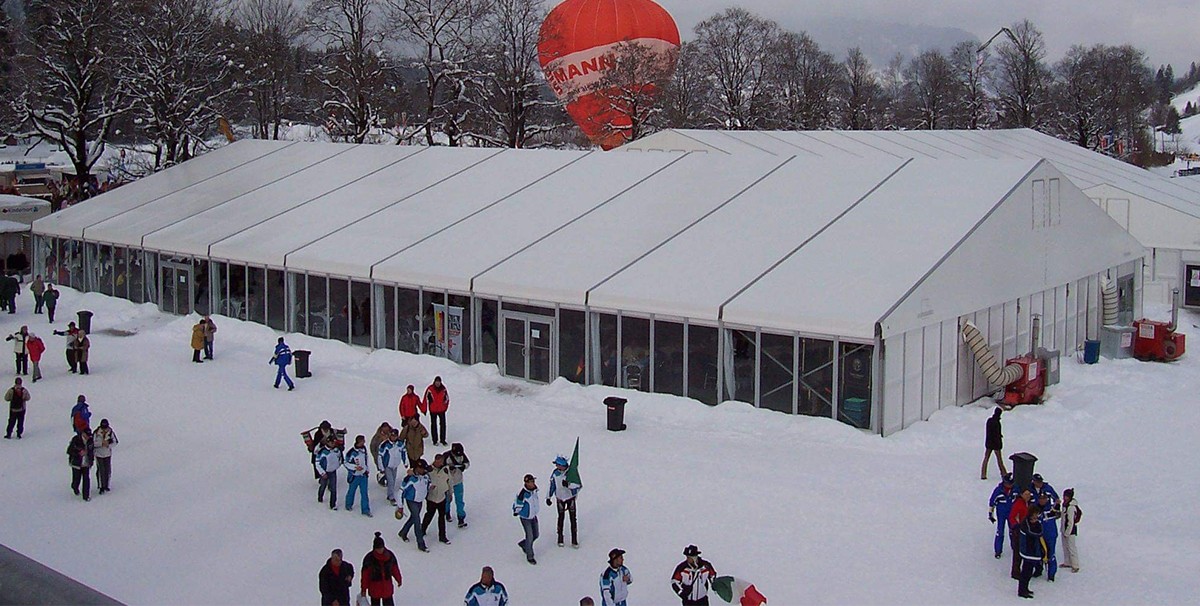

Tent For Party and Wedding-Application Case

Clear span tents are very popular in wedding applications and are the most common we see of all tents. These transparent frame tents can be used for various types of activities, and the design is very stable. The transparent frame material is made of aluminum alloy, so it is also called aluminum alloy tent. Many of our customers will use this kind of tent in parties and weddings, because it is used for building and dismantling, and the number of people it can accommodate is more than 200, and the maximum number of people can be ≤2000 people. Shute has been supplied to the following countries: Lesotho, South Africa, Zambia, Botswana, Uganda, Zimbabwe, Somalia, Kenya, Tanzania and Nigeria, etc.
