Event Gazebo Tent

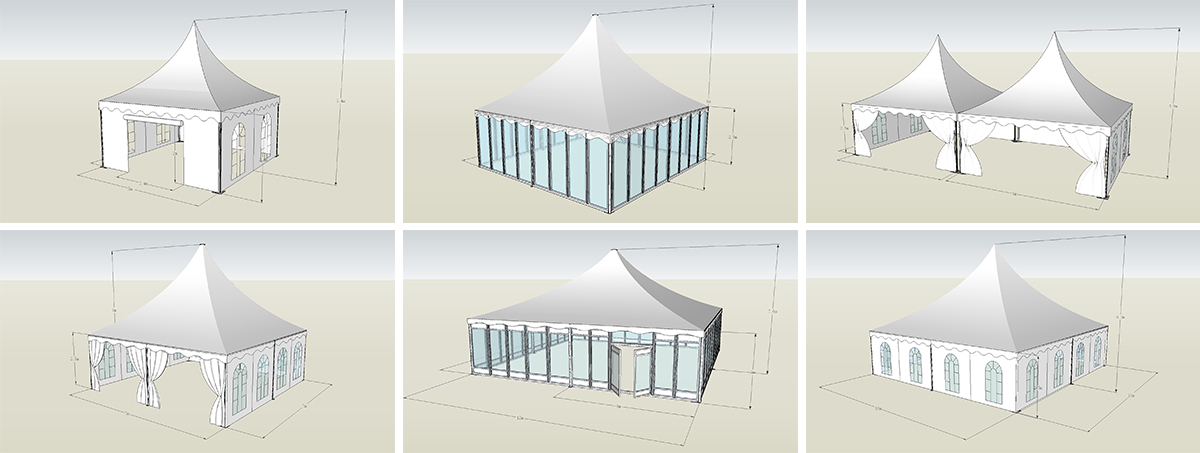

Event Gazebo Tent 3D Design

Gazebo Tent	Span Width	Bay Distance	Side Height	Roof Pitch	Main Aluminum Profile	Wind Load(km/h)	Snow Load(Kn/m2)	Popular Size
SDG-3	3m	3m	2.5m	18°	65x65x2.5mm	80km/h	0.3Kn/m2	3x3m
SDG-4	4m	4m	2.5m	18°	65x65x2.5mm	80km/h	0.3Kn/m2	4x4m
SDG-5	5m	5m	2.5m	18°	65x65x2.5mm	80km/h	0.3Kn/m2	5x5m
SDG-6	6m	6m	2.5m	18°	65x65x2.5mm	80km/h	0.3Kn/m2	6x6m
SDG-7	7m	3.5m	2.5m	18°	122x68x3mm	80km/h	0.3Kn/m2	7x7m
SDG-8	8m	4m	2.5m	18°	122x68x3mm	80km/h	0.3Kn/m2	8x8m
SDG-9	9m	4.5m	2.5m	18°	122x68x3mm	80km/h	0.3Kn/m2	9x9m
SDG-10	10m	5m	2.5m	18°	122x68x3mm	80km/h	0.3Kn/m2	10x10m

Material and Quality

Frame Material	High Reinforced Aluminum Alloy, GB/6061-T6, Anti-rust Surface
Roof Material	850g/㎡ PVC Coated Polyester Fabric
Sidewall Material	650g/㎡ PVC Coated Polyester Fabric
PVC Fabric Feature	Waterproof, UV-resistant, Flame Retardant to DIN4102 B1,M2
Working temperature	-40° to +70°

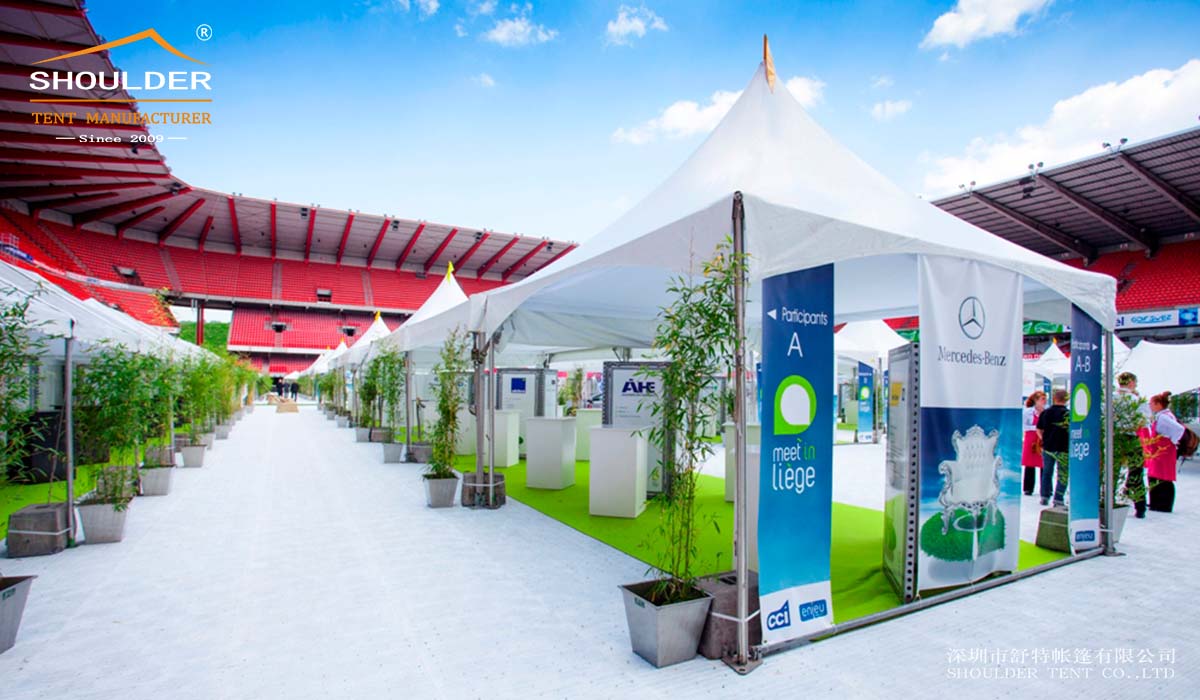

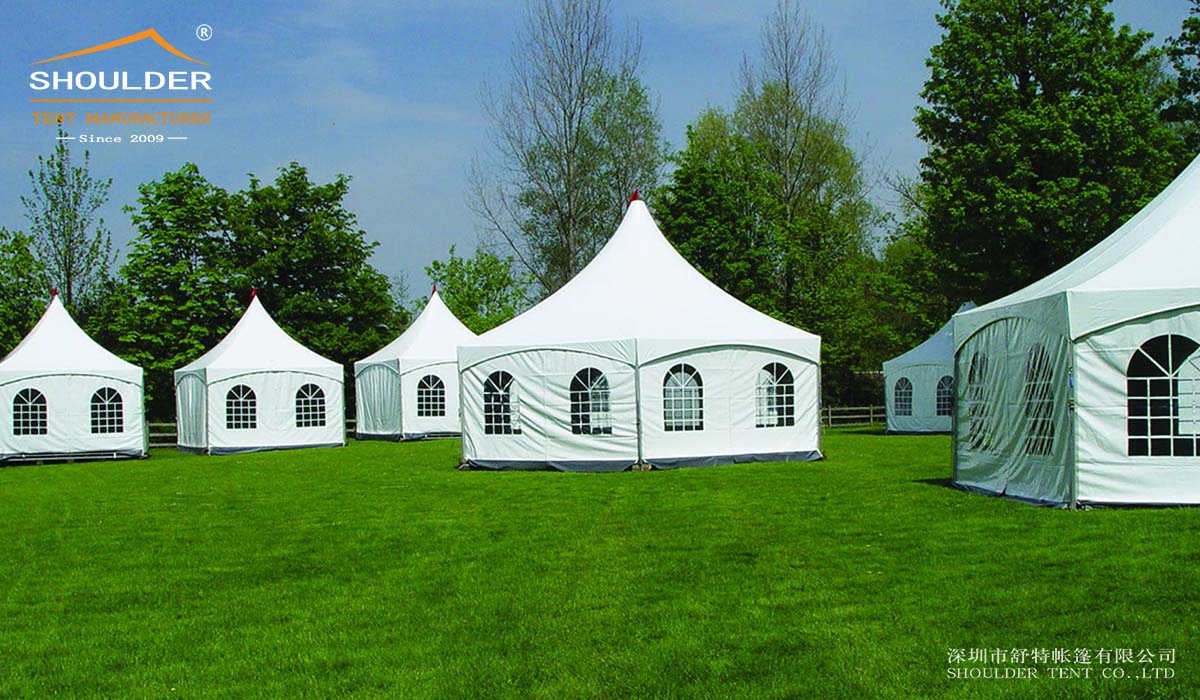

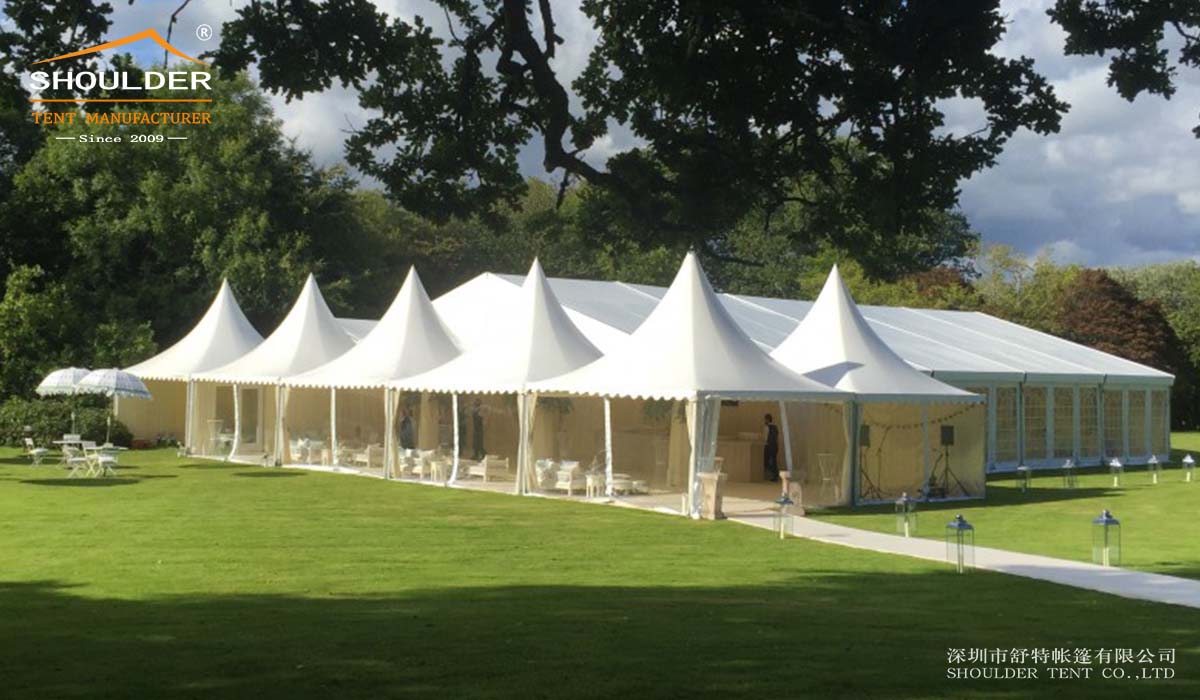

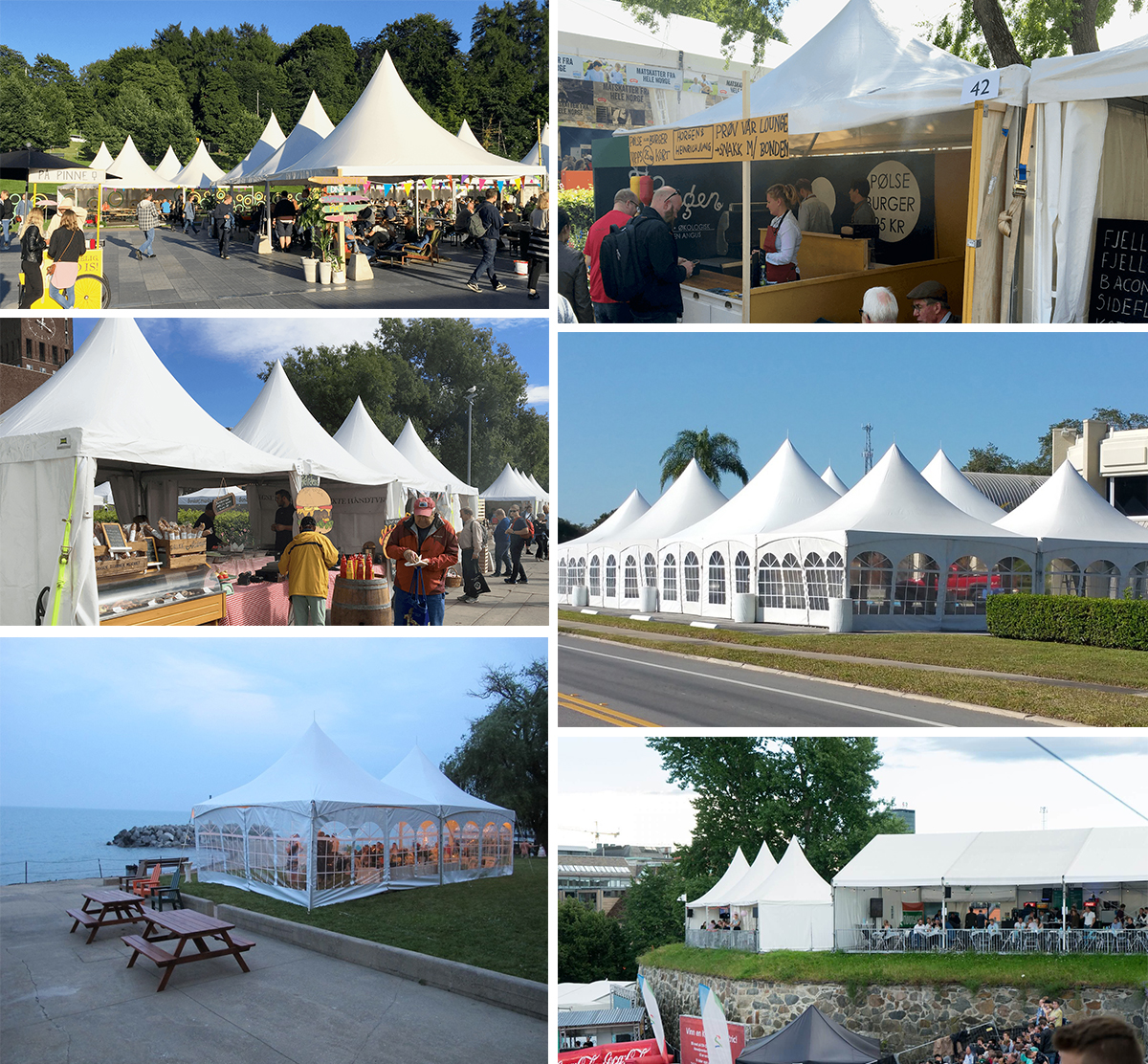

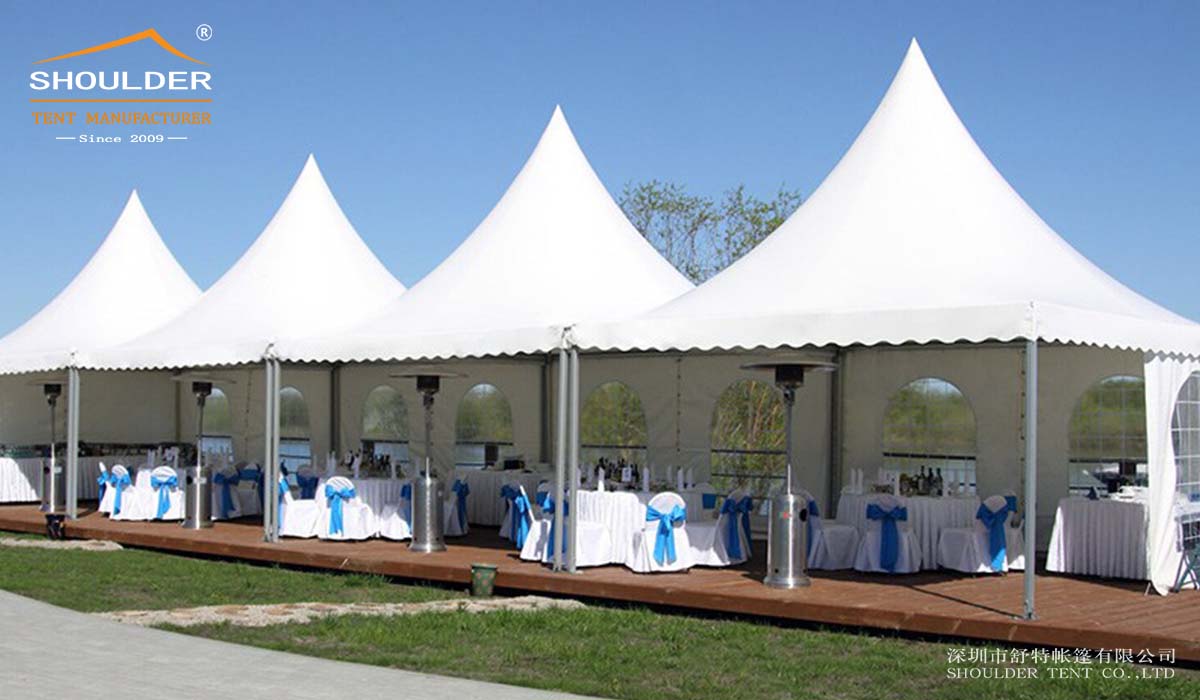

Gazebo Tent For Event

As you can see from the pictures, our pagoda tents are used for various events. These are foreign projects received by shoulder tent manufacturers, and tents have been exported to various countries: New Zealand, Sri Lanka, Norway, Ireland, Germany, Romania, South Africa, Uganda, Zambia, Kenya, Namibia, Philippines, Indonesia, Kazakhstan and Armenia Wait.
