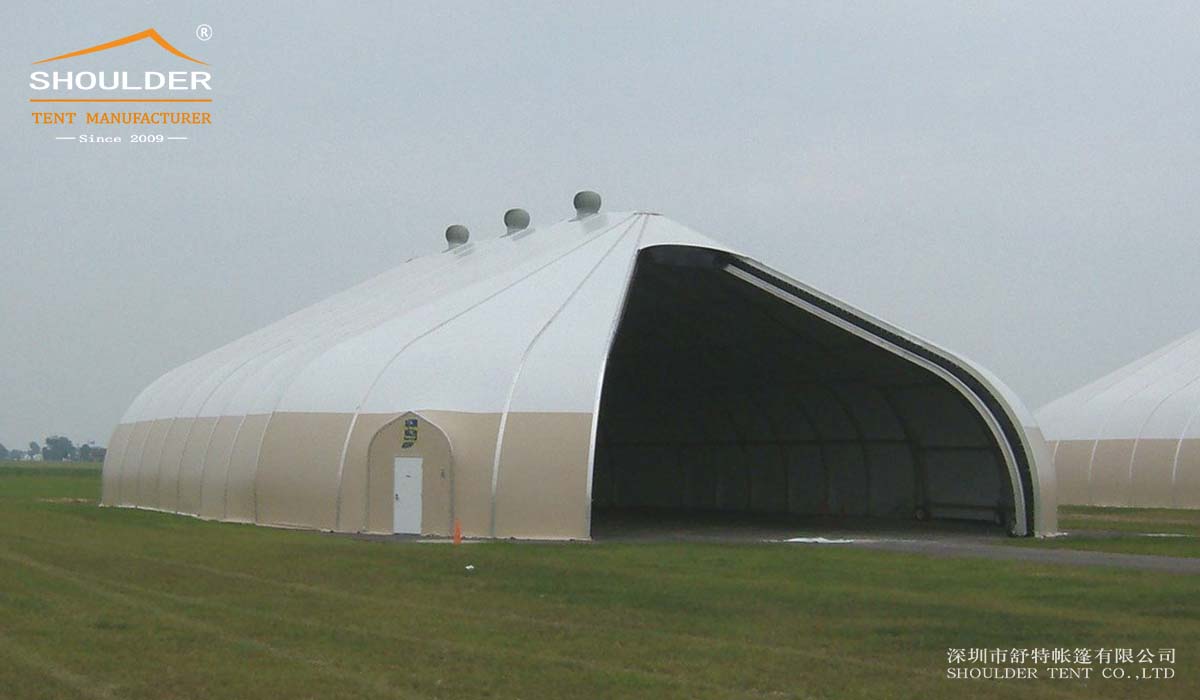

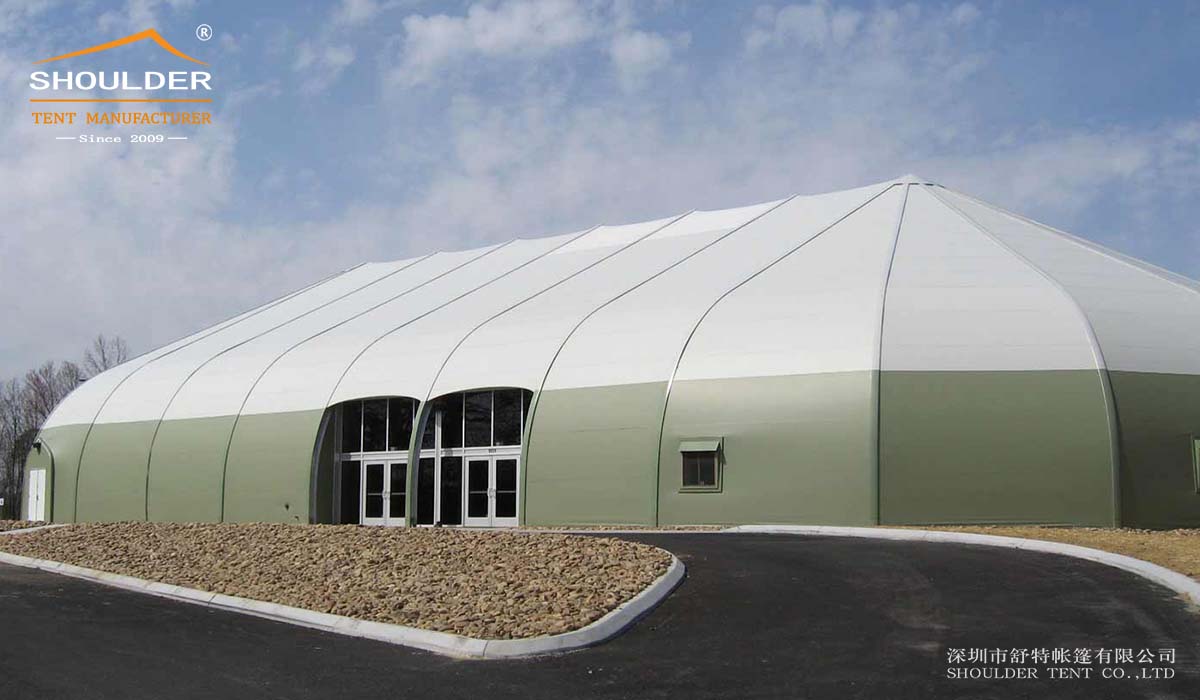

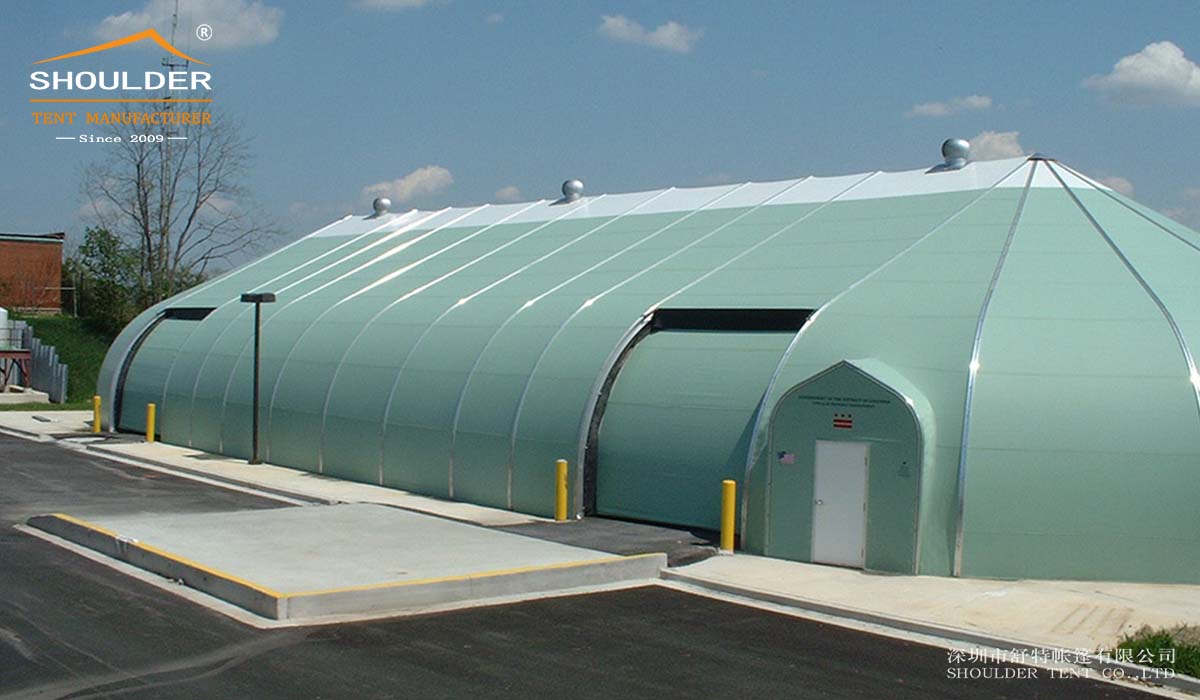

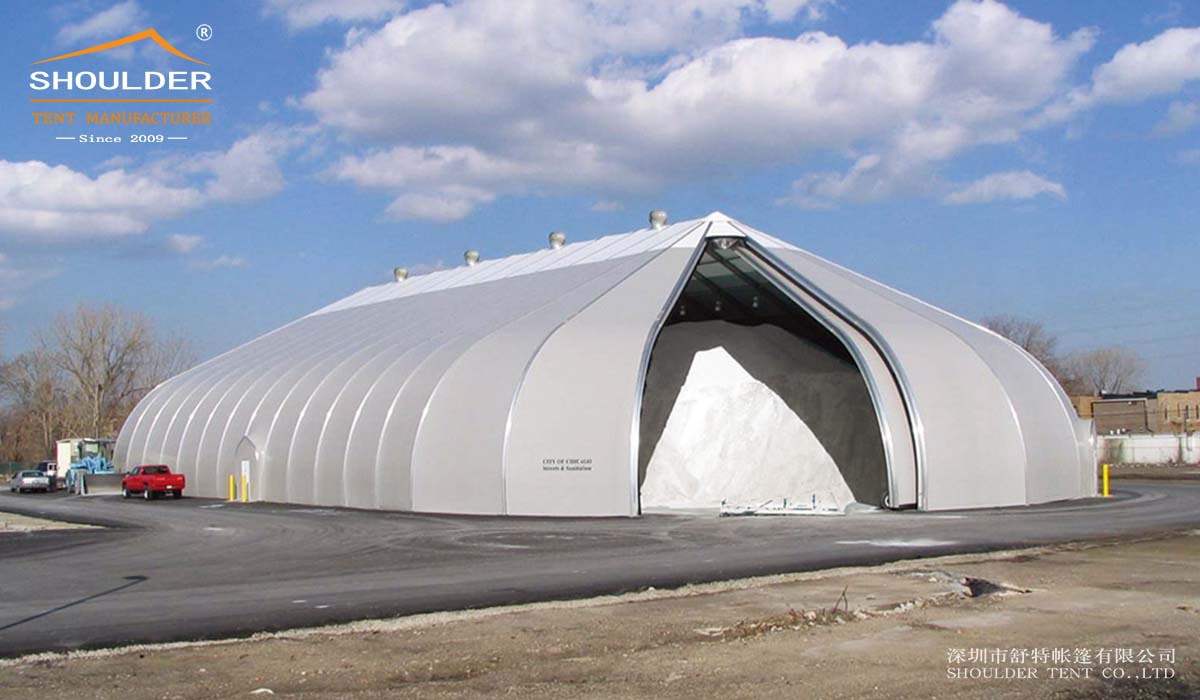

Special Curved tent
TFS Tent | Span Width | Bay Distance | Side Height | Roof Pitch | Main Aluminum Profile | Wind Load(km/h) | Snow Load(Kn/m2) | Popular Size |
SDT-10 | 10m | 5m | 3m | 18° | 122x68x3mm | 100km/h | 0.3Kn/m2 | 10x15m/10x30m |
SDT-12 | 12m | 5m | 3m | 18° | 122x68x3mm | 100km/h | 0.3Kn/m2 | 12x20m/12x30m |
SDT-15 | 15m | 5m | 4m | 18° | 166x88x3mm | 100km/h | 0.3Kn/m2 | 15x30m/15x50m |
SDT-20 | 20m | 5m | 4m | 18° | 204x110x4mm | 100km/h | 0.3Kn/m2 | 20x30m/20x50m |
SDT-25 | 25m | 5m | 4m | 18° | 204x110x4mm | 100km/h | 0.3Kn/m2 | 25x40m/25x50m |
SDT-30 | 30m | 5m | 4m | 18° | 255.5x113.5x5mm | 100km/h | 0.3Kn/m2 | 30x50m/30x60m |
SDT-40 | 40m | 5m | 4m | 18° | 300x120x5mm | 100km/h | 0.3Kn/m2 | 40x50m/40x100m |
Material and Quality | |
Frame Material | High Reinforced Aluminum Alloy, GB/6061-T6, Anti-rust Surface |
Roof Material | 850g/㎡ PVC Coated Polyester Fabric |
Sidewall Material | 650g/㎡ PVC Coated Polyester Fabric |
PVC Fabric Feature | Waterproof, UV-resistant, Flame Retardant to DIN4102 B1,M2 |
Working Temperature | -40° to +70° |
