Industrial Storage

Warehouse Tent 3D Design
The storage tent manufacturer is located in Shenzhen and has an independent 3D design department in order to better serve customers. Our design plan includes a scene-based case diagram, taking into account the durability and stability of the storage tent, and the controllability of the cost. Different customers have different requirements for the wall of storage tents, etc., and the types of storage tents we design have different shapes and types.

Warehouse Tent Specification

Clear Span Tent	Span Width	Bay Distance	Side Height	Roof Pitch	Main Aluminum Profile	Wind Load(km/h)	Snow Load(Kn/m2)	Popular Size
SDC-6	6m	3m	2.6m	20°	84483mm	80km/h	0.3mLn/m2	6x15m/6x21m
SDC-8	8m	3m	2.6m	20°	84483mm	80km/h	0.3mLn/m2	8x15m/8x30m
SDC-10	10m	5m	3m	18°	122683mm	100km/h	0.3mLn/m2	10x15m/10x30m
SDC-12	12m	5m	5m	18°	122683mm	100km/h	0.3mLn/m2	12x20m/12x30m
SDC-15	15m	5m	5m	18°	166883mm	100km/h	0.3mLn/m2	15x30m/15x50m
SDC-20	20m	5m	4m	18°	2041104mm	100km/h	0.3mLn/m2	20x30m/20x50m
SDC-25	25m	5m	4m	18°	2041104mm	100km/h	0.3mLn/m2	25x40m/25x50m
SDC-30	30m	5m	4m	18°	255.5113.55mm	100km/h	0.3mLn/m2	30x50m/30x60m
SDC-140	40m	5m	4m	18°	3001205mm	100km/h	0.3mLn/m2	40x50m/40x100m
SDC-50	50m	5m	4m	18°	3501205mm	100km/h	0.3mLn/m2	50x50m/50x100m

Material and Quality
Aluminum Frame Material	High Reinforced Aluminum Alloy, GB/6061-T6, Anti-rust Surface
Roof Material	850g/㎡ PVC Coated Polyester Fabric
Sidewall Material	650g/㎡ PVC Coated Polyester Fabric
PVC Fabric Feature	Waterproof, UV-resistant, Flame Retardant to DIN4102 B1,M2
Working temperature	-40° to +70°

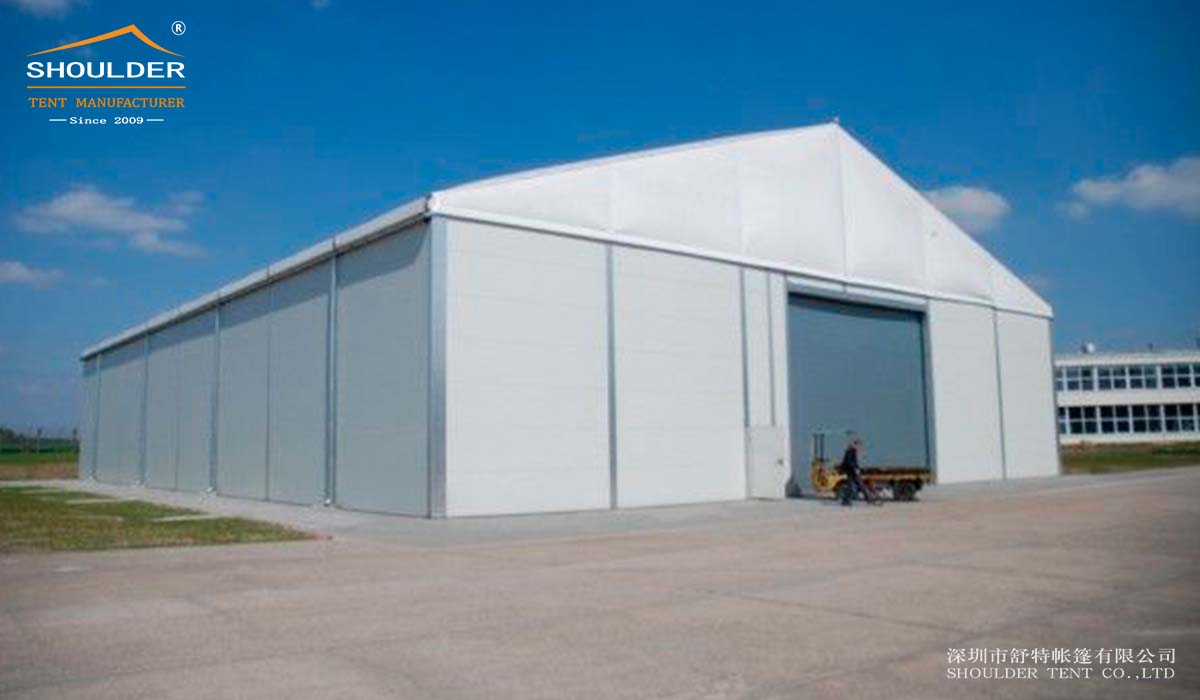

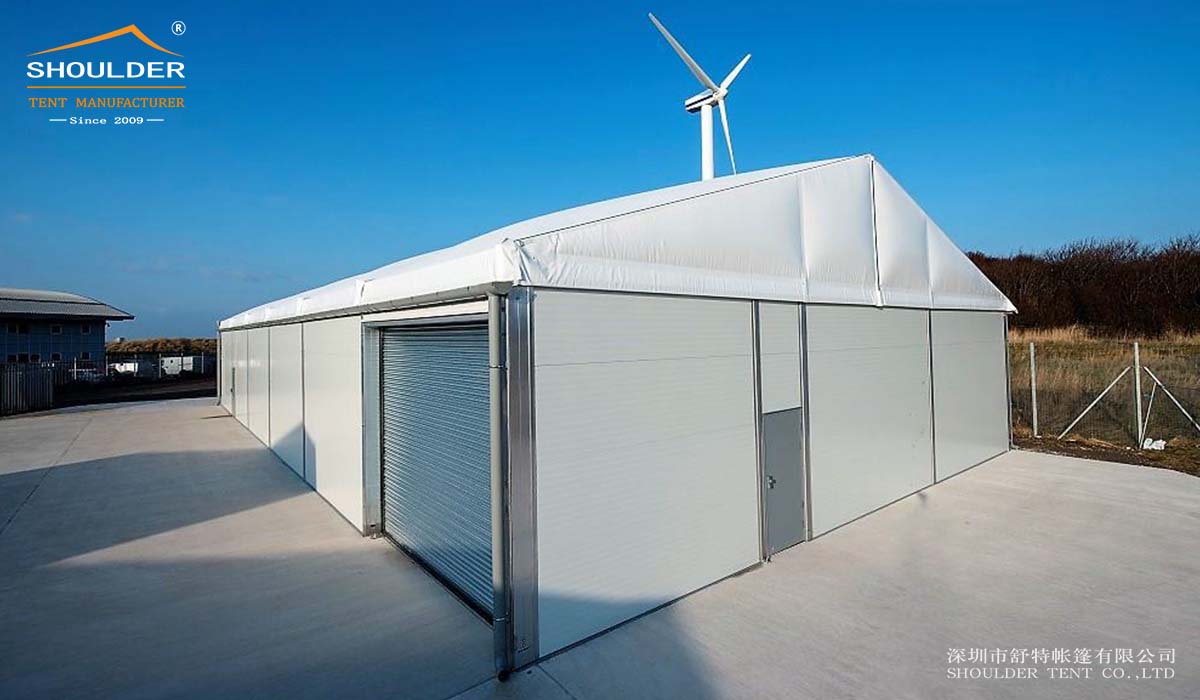

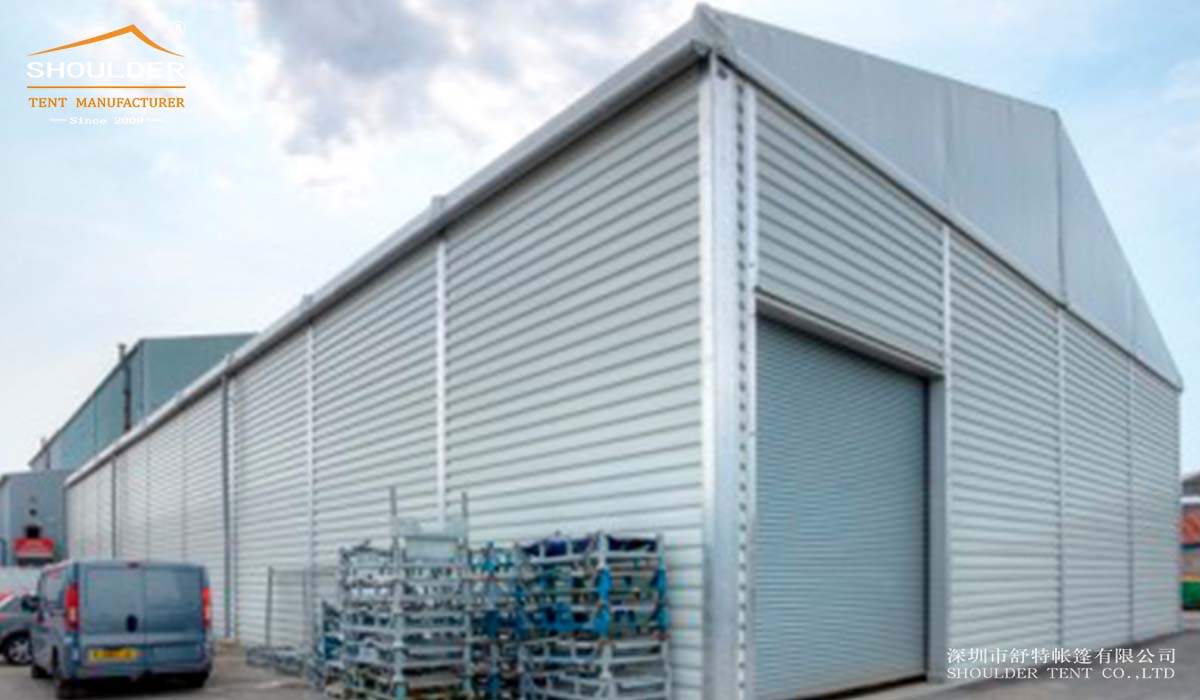

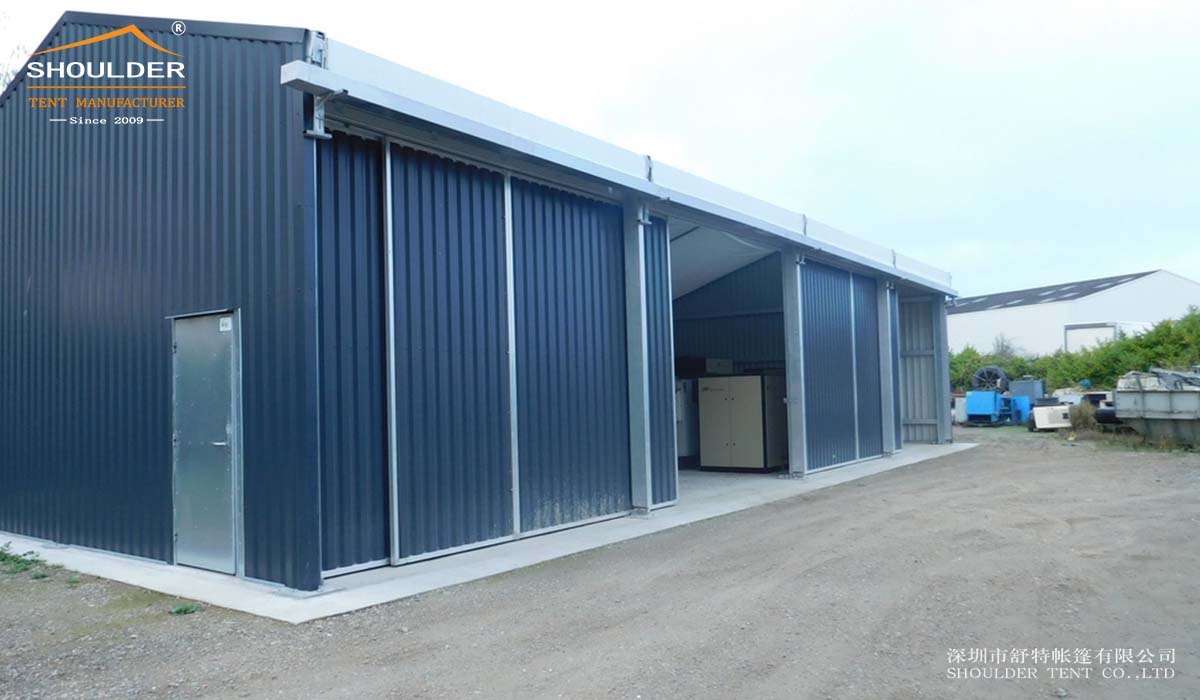

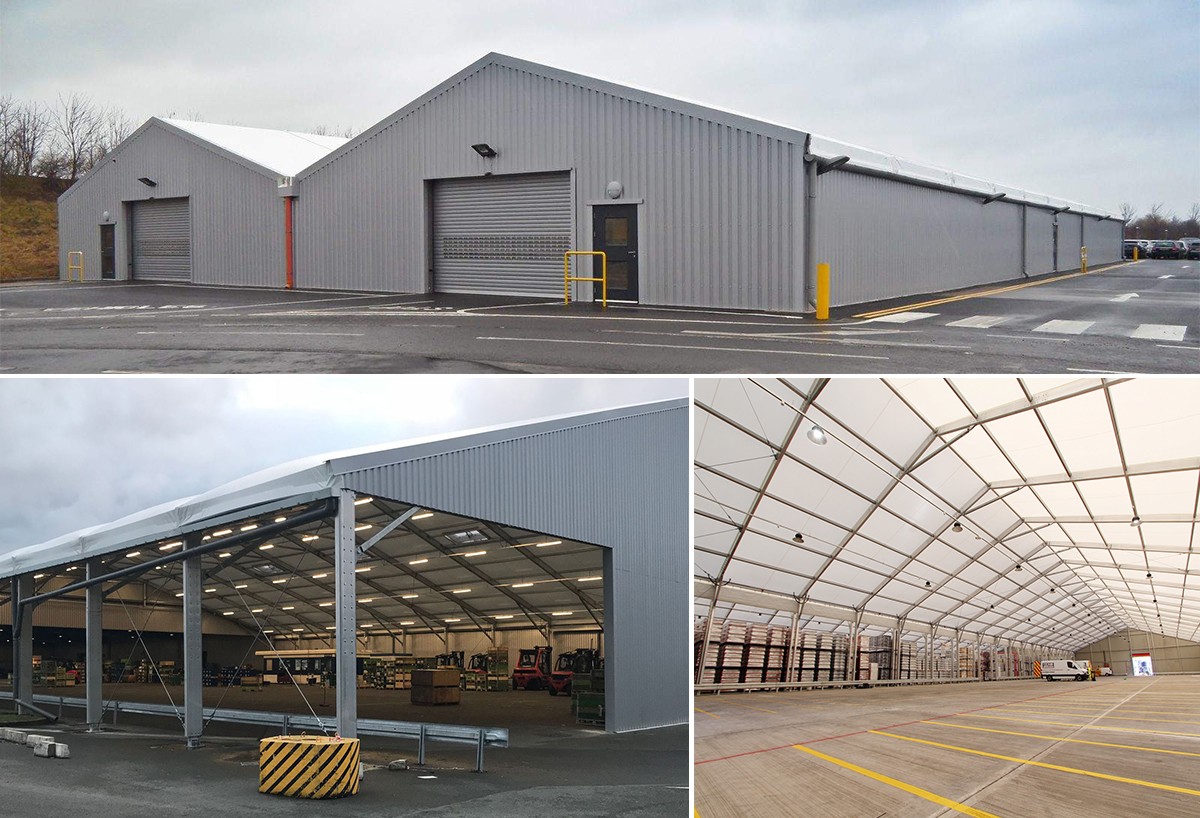

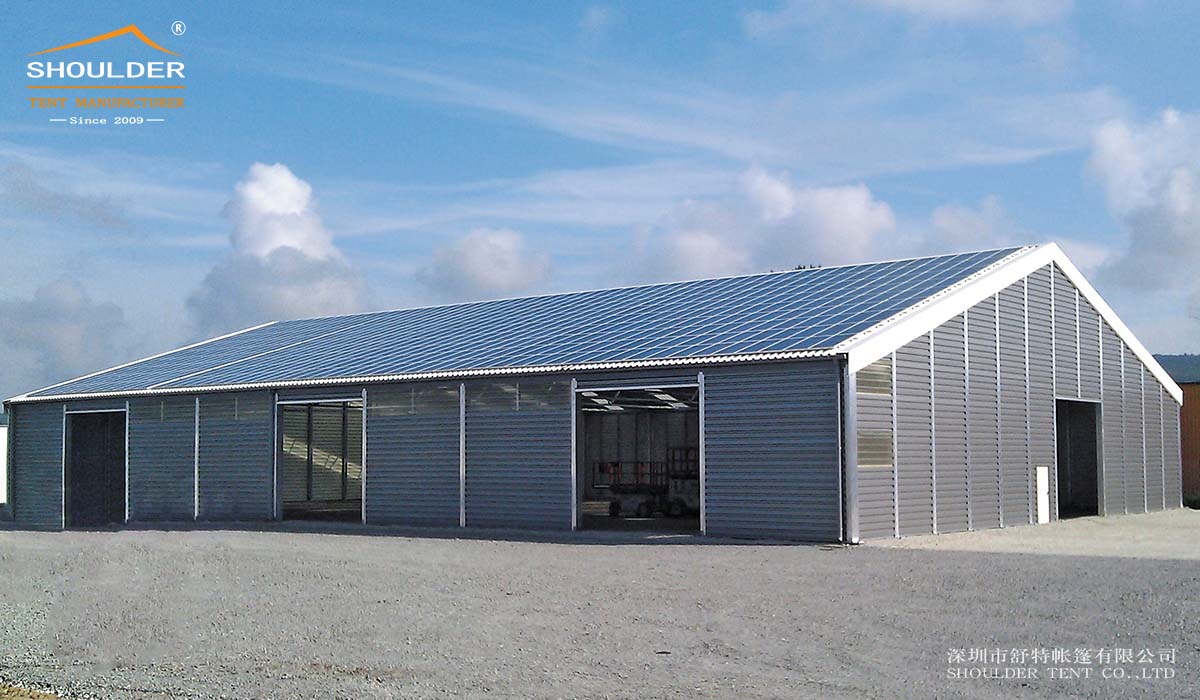

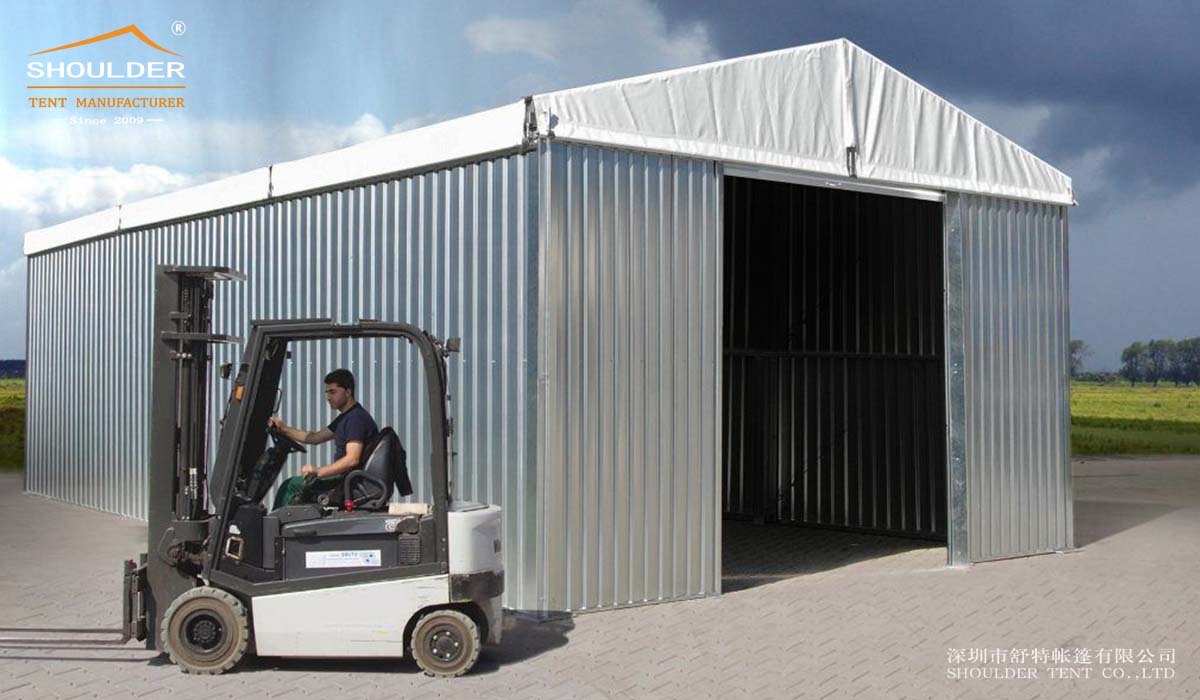

Warehouse Tent
Storage tents are a quick and effective economical solution. Facility warehousing for industry, commerce and agriculture. Thanks to our span design, it offers maximum storage space at an affordable cost that fits within your budget. Not only can they meet the needs of farms, they can not only meet many needs of farms, such as grain/hay storage, but also suitable for industrial sites, such as equipment storage, goods storage, logistics storage, temporary workshops, oil, gas extraction and exploration Wait.

Our PVC fabrics are flame retardant, translucent, UV resistant, windproof, and rainproof, protecting your property and goods from rain, snow, dust, and UV rays.

If you are looking for a storage tent design manufacturer, shoulder tent tents will be your wise and profitable choice. They are fast, simple, durable, removable and low-cost storage investment solutions.
